Improves Casting Surface Finish
Korvanto Carbon
Korvanto Carbon
Lustrous Carbon Additive for Green Sand Foundry Applications
Export Ready
Overview

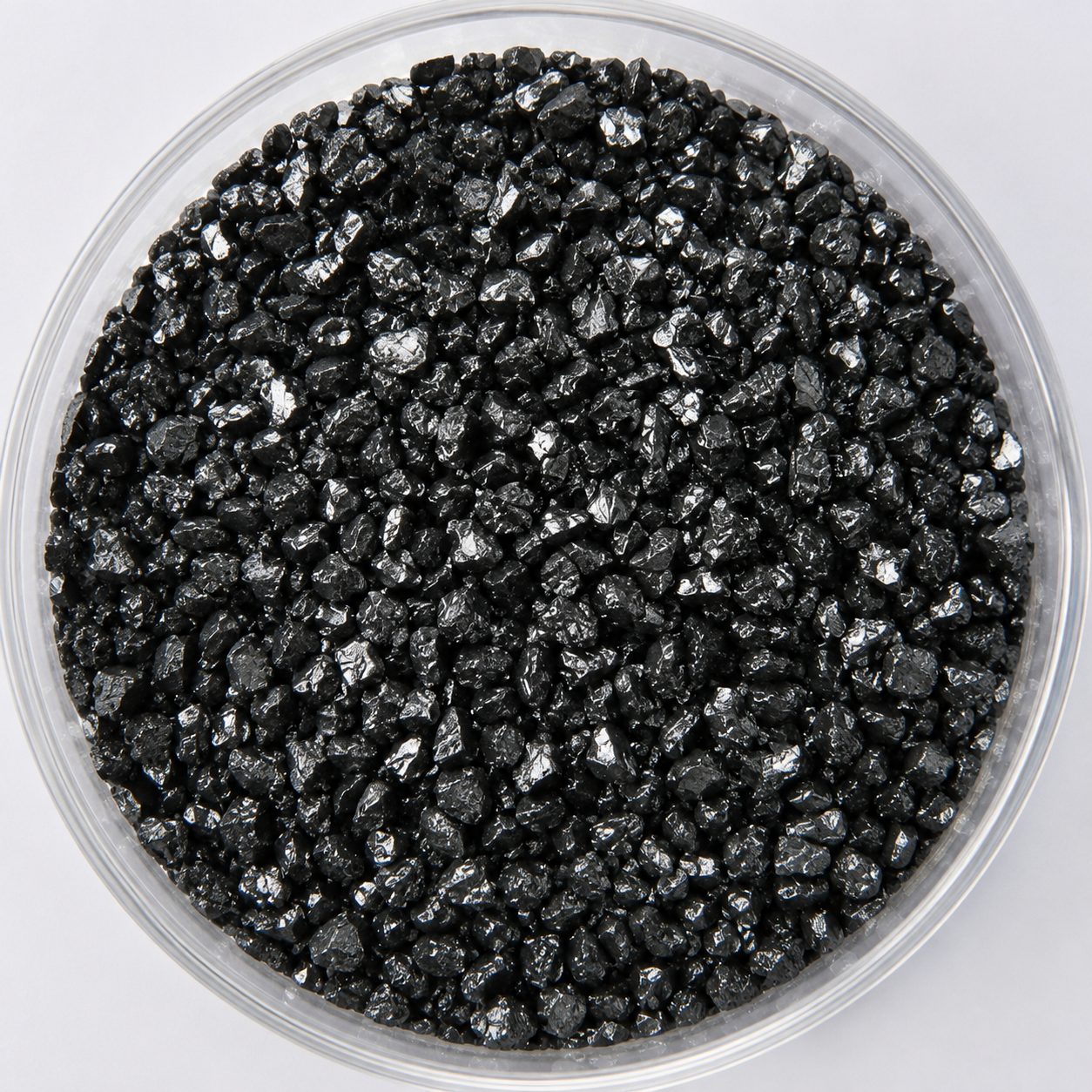

Product Overview
KORVANTO CARBO™ is a premium-quality lustrous carbon additive manufactured from carefully selected carbonaceous materials and processed to deliver superior performance in green sand molding systems. Designed specifically for ferrous foundries it improves casting surface finish reduces sand-related defects and enhances molding sand performance.
When exposed to molten metal temperatures KORVANTO CARBO™ generates a reducing gaseous atmosphere and forms a lustrous carbon layer at the mold-metal interface. This protective carbon film acts as a non-wetting barrier between molten metal and molding sand minimizing metal penetration sand adhesion burn-on defects and surface irregularities.
Engineered for modern foundry operations KORVANTO CARBO™ helps improve casting quality reduce rejection rates enhance sand recyclability and optimize overall production efficiency.
Performance
Key Benefits
Reduces Sand Burn-On and Metal Penetration
Minimizes Scabbing Erosion and Surface Defects
Improves Sand-to-Casting Separation During Shakeout
Enhances Mold Collapsibility
Reduces Fettling and Finishing Costs
Lowers Foundry Rejection Rates
Reduces Fresh Sand Consumption
Supports Higher Sand Recyclability
Improves Process Consistency and Productivity
Helps Reduce Bentonite Consumption in Optimized Systems
Grades
Available Grades
| Product Name | Base Material | Volatile Matter (%) | Ash (%) Max |
|---|---|---|---|
| KORVANTO LUSTROUS ELITE | Coal Seam HLCA | 40 – 50 | 7.0 |
| KORVANTO LUSTROUS PREMIUM | Coal Seam LCA | 50 – 55 | 8.0 |
| KORVANTO LUSTROUS ADVANCE | Coal Seam CA | 55 – 65 | 6.0 |
| KORVANTO LUSTROUS STANDARD | Coal Seam | 45 – 55 | 9.0 |
Fixed Carbon: By Difference
Technical Data
Representative Technical Specifications

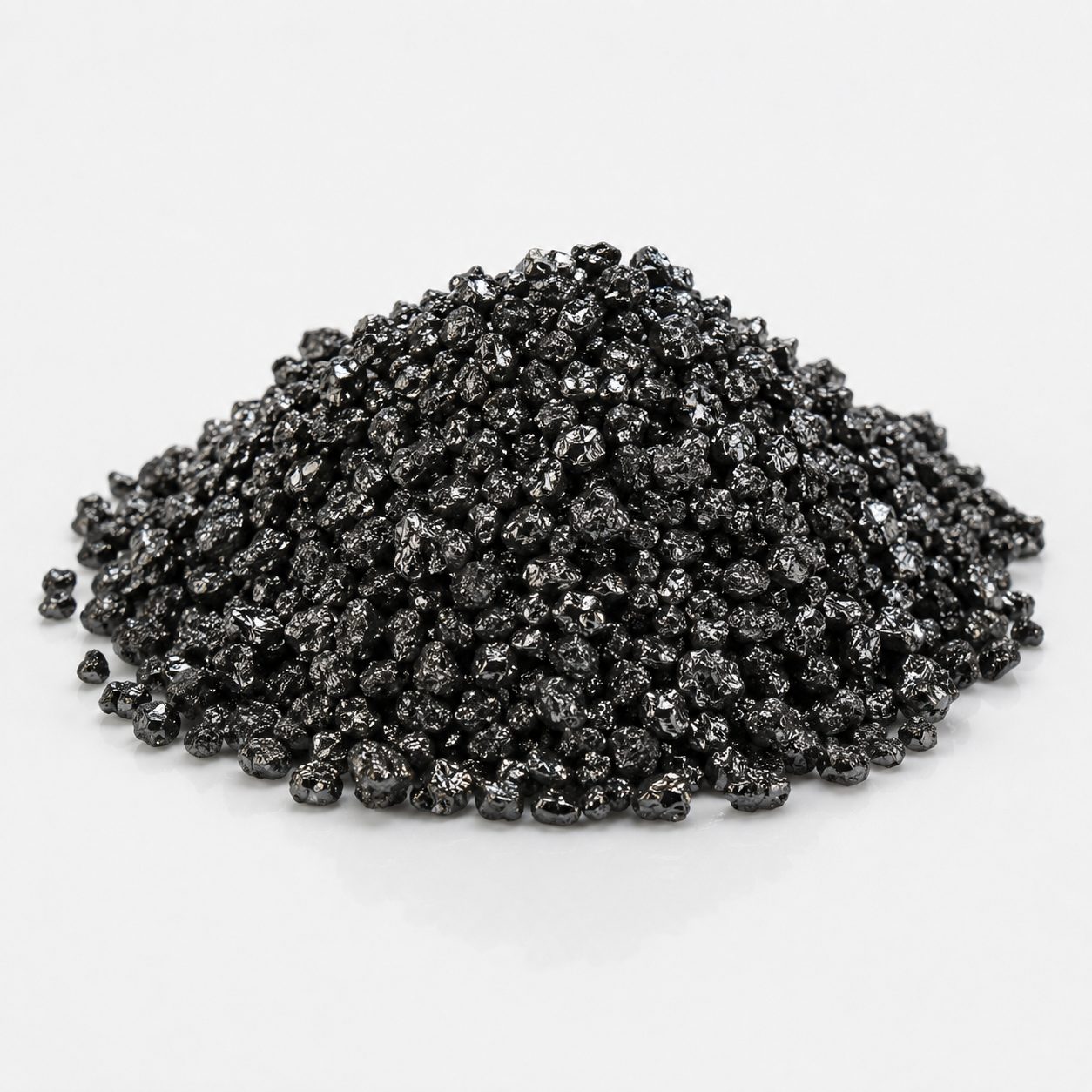

KORVANTO LUSTROUS ELITE
| Parameter | Representative Value |
|---|---|
| Base Material | Coal Seam HLCA |
| Volatile Matter | 40 – 50% |
| Ash | ≤ 7.0% |
| Fixed Carbon | By Difference |
| Applications | SG Iron Castings; Grey Iron Castings; High Carbon Metal Casting |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.

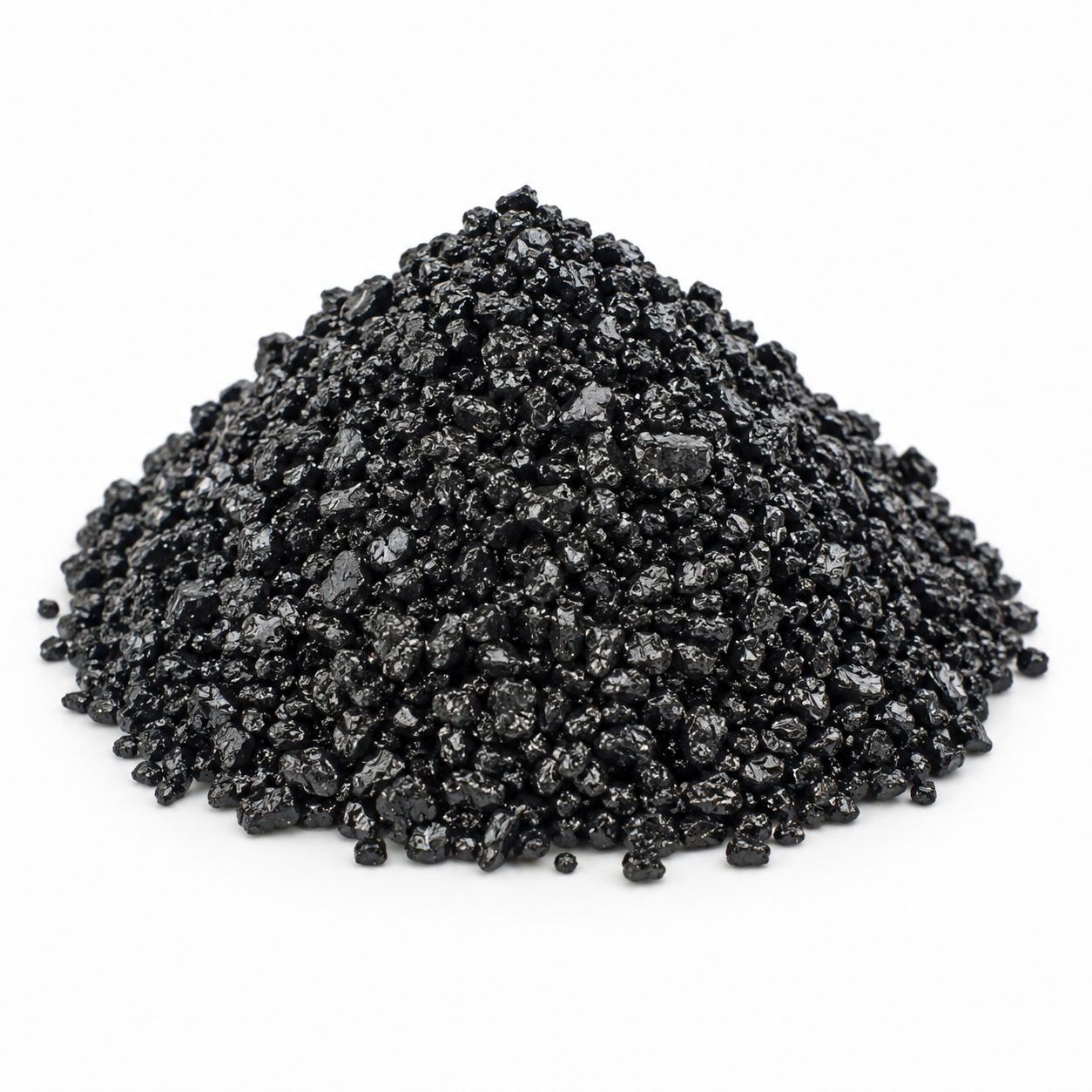

KORVANTO LUSTROUS PREMIUM
| Parameter | Representative Value |
|---|---|
| Base Material | Coal Seam LCA |
| Volatile Matter | 50 – 55% |
| Ash | ≤ 8.0% |
| Fixed Carbon | By Difference |
| Applications | Green Sand Foundries; Grey Iron Castings; General Foundry Use |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.

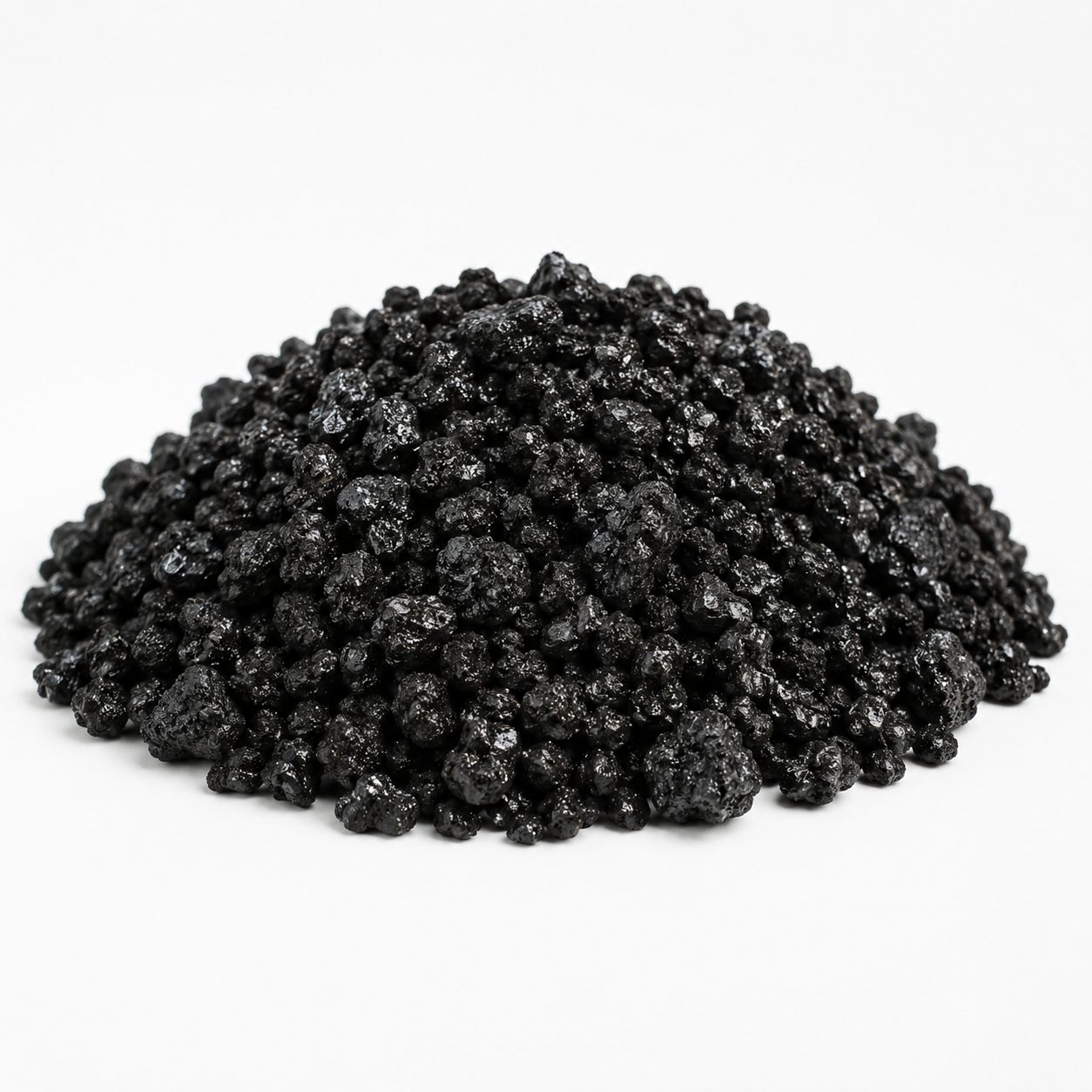

KORVANTO LUSTROUS ADVANCE
| Parameter | Representative Value |
|---|---|
| Base Material | Coal Seam CA |
| Volatile Matter | 55 – 65% |
| Ash | ≤ 6.0% |
| Fixed Carbon | By Difference |
| Applications | Premium Foundry Moulding Sand; Precision Castings; High Surface Finish Requirements |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.

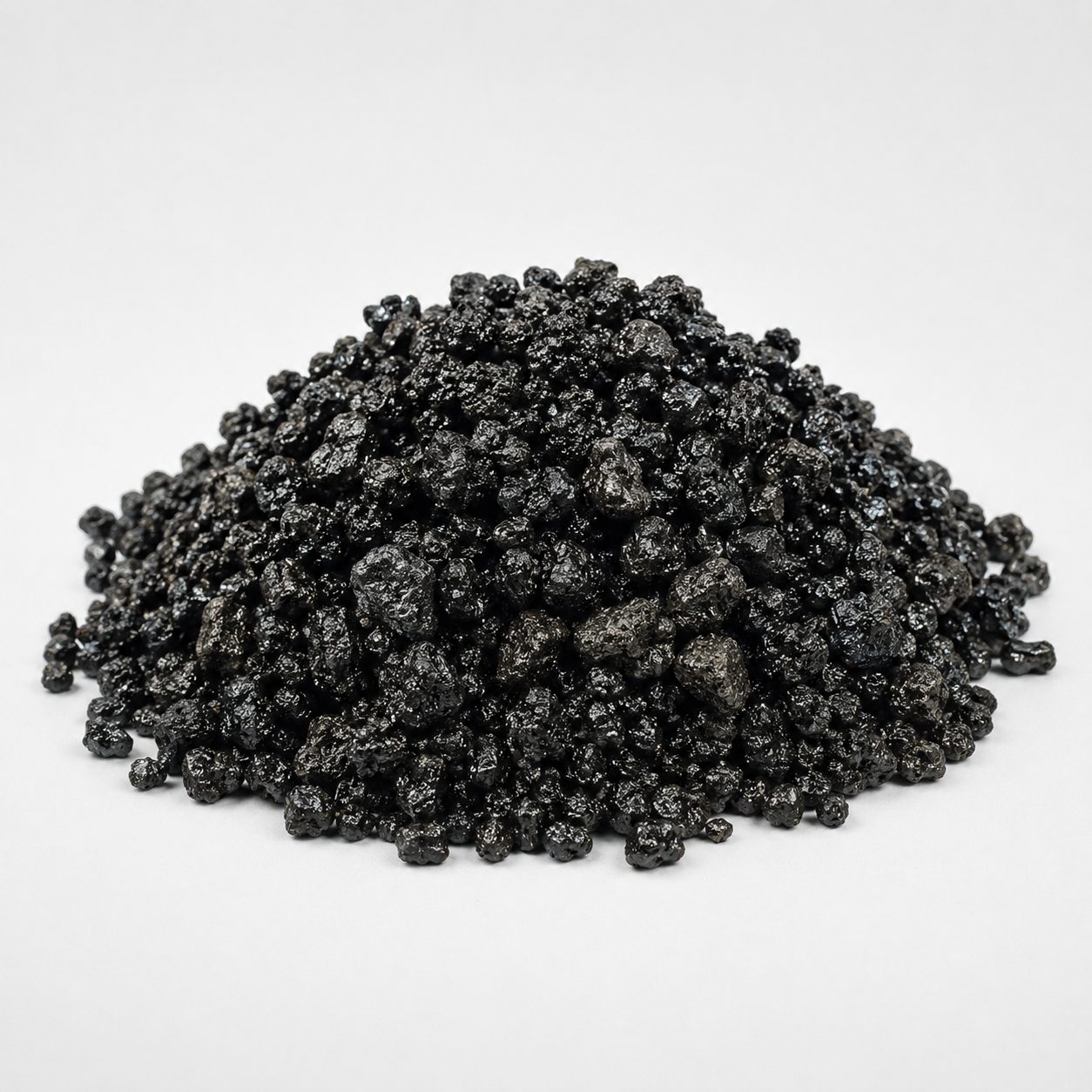

KORVANTO LUSTROUS STANDARD
| Parameter | Representative Value |
|---|---|
| Base Material | Coal Seam |
| Volatile Matter | 45 – 55% |
| Ash | ≤ 9.0% |
| Fixed Carbon | By Difference |
| Applications | Standard Foundry Applications; General Casting Operations; Moulding Sand Additive |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.
Industry Use
Applications
Grades
Available Grades
KORVANTO LUSTROUS ELITE — Coal Seam HLCA
Volatile Matter 40 – 50% · Ash Max 7.0%
- Premium Foundry Applications
- Critical Surface Finish Requirements
- High-End Automotive and Industrial Castings
KORVANTO LUSTROUS PREMIUM — Coal Seam LCA
Volatile Matter 50 – 55% · Ash Max 8.0%
- High-Quality Surface Finish Requirements
- Automotive Castings
- Precision Engineering Castings
KORVANTO LUSTROUS ADVANCE — Coal Seam CA
Volatile Matter 55 – 65% · Ash Max 6.0%
- General Purpose Foundries
- Grey Iron Castings
- Standard Green Sand Systems
KORVANTO LUSTROUS STANDARD — Coal Seam
Volatile Matter 45 – 55% · Ash Max 9.0%
- Standard Foundry Applications
- General Casting Operations
- Moulding Sand Additive
Bespoke Supply
Custom Grade
Custom Manufacturing Options
Korvanto supplies carbon according to customer requirements including:
Discuss Custom Specs →Particle Size Distribution
Custom Specifications & Grades
Application-Specific Formulations
Quality & Purity Requirements
Custom Packaging
Export Documentation Support
Export Supply
Packaging Options
Product Support
Frequently Asked Questions
Which grades of KORVANTO Carbon are available
Korvanto offers four standard grades to suit different foundry requirements:
What packaging options are available
25 kg Bags
50 kg Bags
Jumbo Bags (FIBC)
Palletized Shipments
Bulk Container Loads
Customized export packaging is also available upon request.
What quality documents are available
Depending on customer requirements Korvanto can provide:
Technical Data Sheet (TDS)
Certificate of Analysis (COA)
Safety Data Sheet (SDS) where applicable
Commercial Invoice
Packing List
Certificate of Origin (where applicable)
Other export documentation as required.
Get Started
Request TDS / Request Quote
Share your grade requirements destination country and documentation needs. Our export team will provide a Technical Data Sheet certificate support and a tailored quotation for Korvanto Carbon.
