Withstands Extreme Operating Temperatures
Korvanto Chamotte
Korvanto Chamotte
Chamotte (Refractory Clay) for Refractory Ceramic & High-Temperature Applications
Export Ready
Overview
Product Overview
KORVANTO CHAM™ is a premium-grade calcined refractory clay (Chamotte) produced from carefully selected kaolinitic clays and fired at high temperatures to develop exceptional thermal stability strength and dimensional consistency. The calcination process transforms the clay into a highly stable refractory aggregate capable of withstanding extreme temperatures and thermal cycling.
Processed through advanced crushing screening and grading systems KORVANTO CHAM™ is available in various particle sizes and alumina grades to meet the requirements of refractory manufacturers ceramic producers foundries steel plants cement kilns and other high-temperature industries.
Its superior resistance to thermal shock abrasion shrinkage and chemical degradation makes it an ideal raw material for fire bricks castables refractory mortars kiln furniture insulation materials and technical ceramics.
Performance
Key Benefits
Improves Refractory Service Life
Reduces Cracking and Firing Defects
Enhances Structural Integrity of Refractory Products
Improves Thermal Shock Resistance
Provides Consistent Performance in High-Heat Environments
Supports Stable Refractory and Ceramic Formulations
Suitable for Both Dense and Insulating Refractories
Improves Dimensional Accuracy in Ceramic Bodies
Reliable Batch-to-Batch Quality
Quick Reference
All Grades at a Glance
| Grade | Al₂O₃ (%) | PCE (SK) | Fe₂O₃ | Typical Application | Recommended For | Sizes Available |
|---|---|---|---|---|---|---|
| Korvanto Cham LF 42 | ~42% | 32 | <1.25% max | Castables ceramics foundry | Cost-effective refractory applications | 0–1 1–3 3–5 mm 200M |
| Korvanto Cham LF 46 | ~46% | 32 | <1.5% max | High-duty castables kiln furniture | Heavy-duty castables | 0–1 1–3 3–5 mm 200M |
| Korvanto Cham LF 54 | ~54% | 32 | <2% | Dense bricks glass furnace cement | Dense refractory bricks | 0–1 1–3 3–5 mm 200M |
| Korvanto Cham LF 60 | ~60% | 32 | <2% | Steel plants premium castables | Steel plants | 0–1 1–3 3–5 mm 200M |
| Korvanto Cham LF 70 | 70% | 32 | <3% | Glass furnace steel tundish export | Export-grade premium refractories | 0–1 1–3 3–5 mm 200M |
Technical Data
Representative Technical Specifications

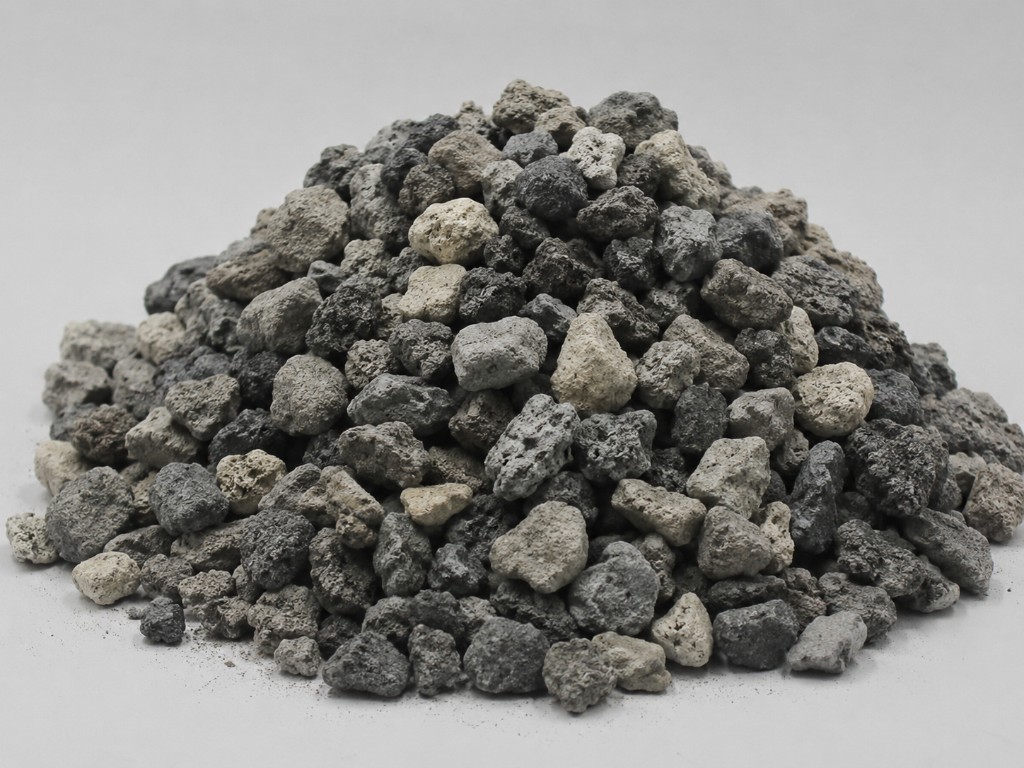

KORVANTO CHAM LF42
| Parameter | Representative Value |
|---|---|
| Application | Castables Ceramics Foundry |
| Al₂O₃ | ~42% |
| PCE (SK) | 32 |
| Fe₂O₃ | < 1.25% |
| Sizes Available | 0–1 mm 1–3 mm 3–5 mm 200 Mesh |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.

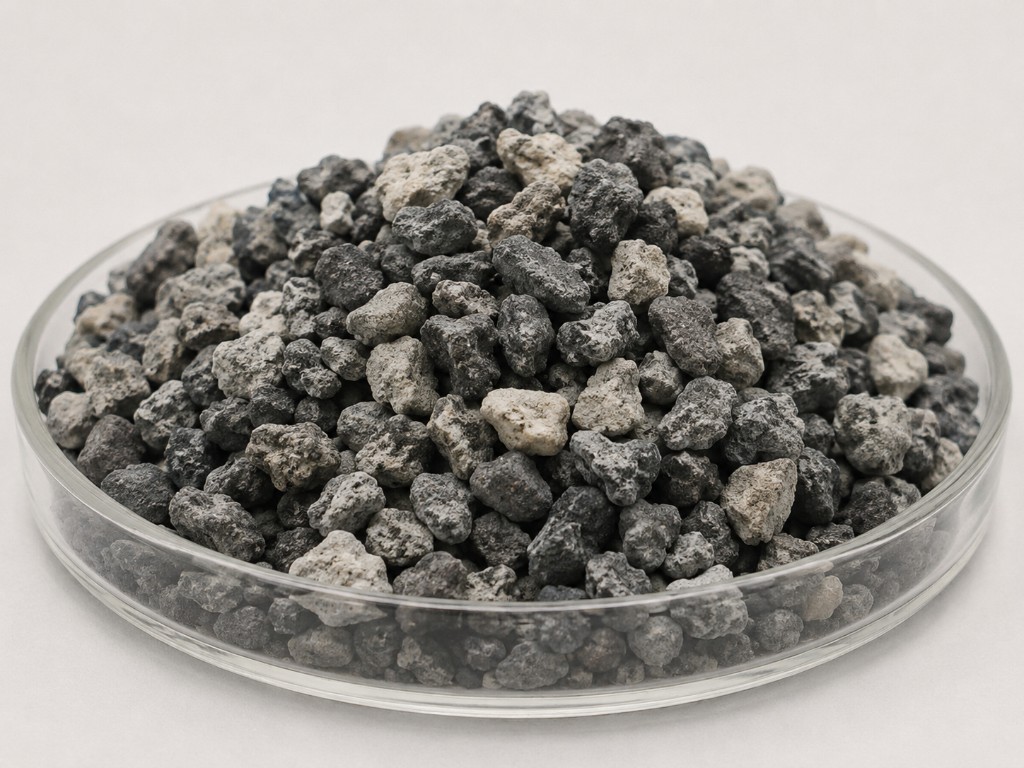

KORVANTO CHAM LF46
| Parameter | Representative Value |
|---|---|
| Application | High-Duty Castables Kiln Furniture |
| Al₂O₃ | ~46% |
| PCE (SK) | 32 |
| Fe₂O₃ | < 1.5% |
| Sizes Available | 0–1 mm 1–3 mm 3–5 mm 200 Mesh |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.

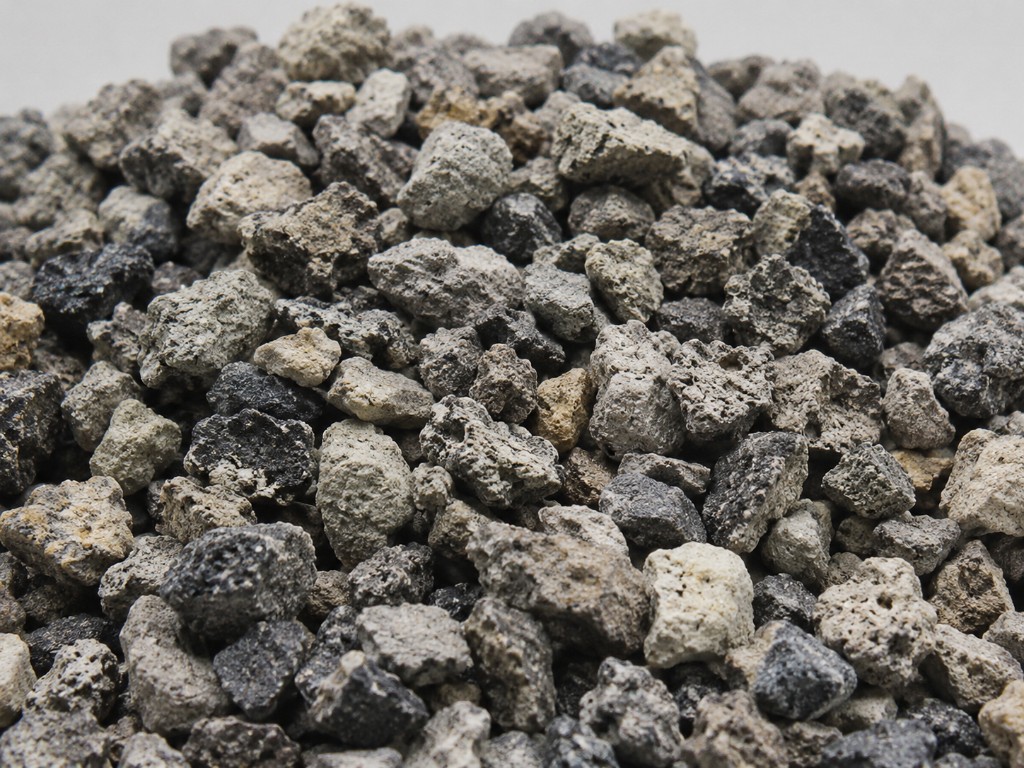

KORVANTO CHAM LF54
| Parameter | Representative Value |
|---|---|
| Application | Dense Refractory Bricks Glass Furnace Cement Industry |
| Al₂O₃ | ~54% |
| PCE (SK) | 32 |
| Fe₂O₃ | < 2.0% |
| Sizes Available | 0–1 mm 1–3 mm 3–5 mm 200 Mesh |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.

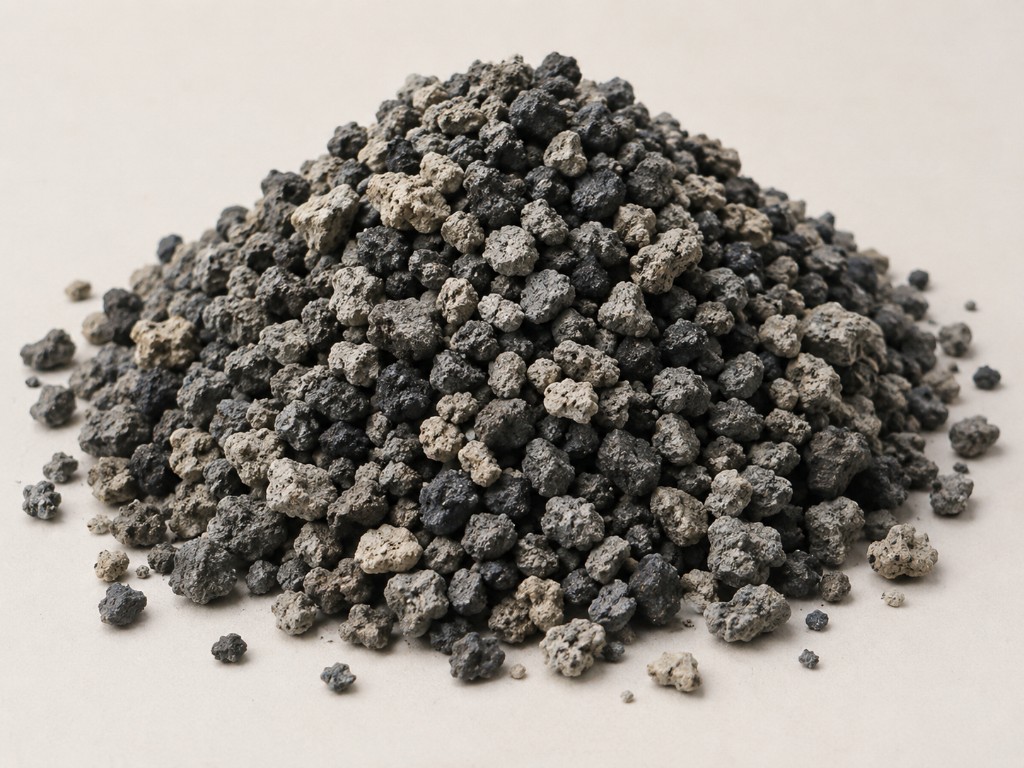

KORVANTO CHAM LF60
| Parameter | Representative Value |
|---|---|
| Application | Steel Plants Premium Castables |
| Al₂O₃ | ~60% |
| PCE (SK) | 32 |
| Fe₂O₃ | < 2.0% |
| Sizes Available | 0–1 mm 1–3 mm 3–5 mm 200 Mesh |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.

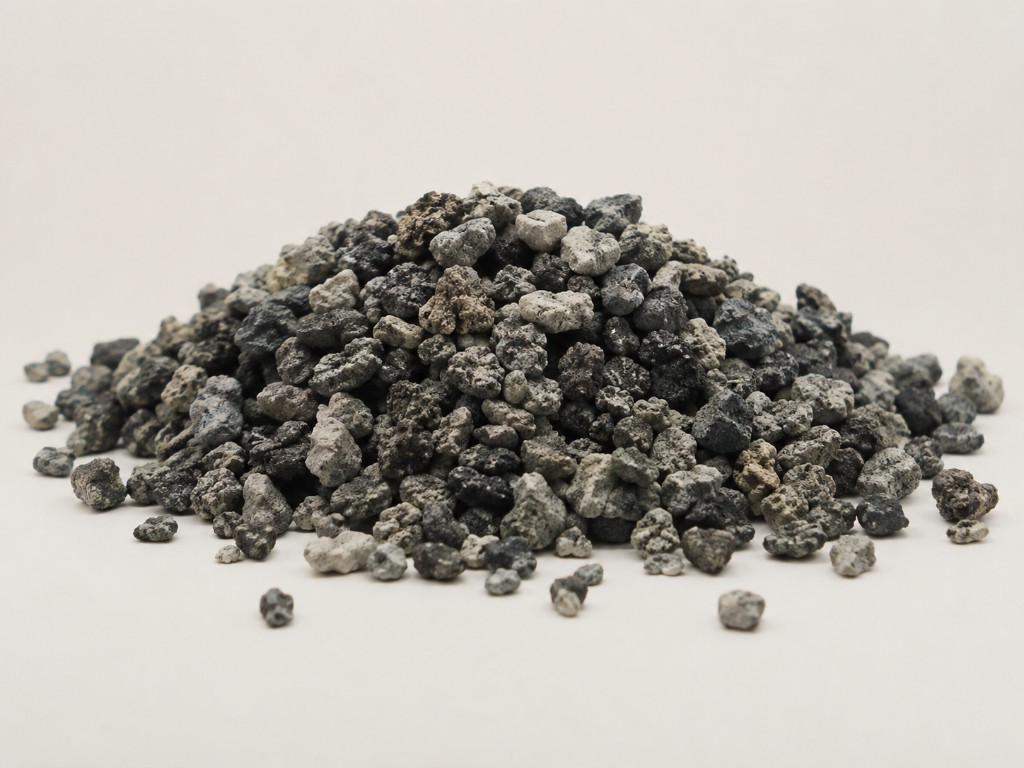

KORVANTO CHAM LF70
| Parameter | Representative Value |
|---|---|
| Application | Glass Furnaces Steel Tundish Export Refractories |
| Al₂O₃ | ~70% |
| PCE (SK) | 32 |
| Fe₂O₃ | < 3.0% |
| Sizes Available | 0–1 mm 1–3 mm 3–5 mm 200 Mesh |
Representative values shown above. Full Technical Data Sheet (TDS) Certificate of Analysis (COA) and additional documentation are available upon request.
Compare Options
Not sure whether Chamotte or Calcined Bauxite is right for your application
| Property | Standard Chamotte (42%) | High Alumina Chamotte (60–70%) | Calcined Bauxite (80–86%) |
|---|---|---|---|
| Al₂O₃ Content | ~42% | 60–70%+ | 80–86%+ |
| Fe₂O₃ | Low | Very Low | Controlled |
| Refractoriness (PCE) | SK 30–32 | SK 34–36 | SK 37–38+ |
| Thermal Shock Resistance | Good | Very Good | Excellent |
| Typical Application | Ceramics standard castables | High-duty castables bricks | Steel glass cement plants |
| Particle Size Available | 0–1 1–3 3–5 mm 200 Mesh | 0–1 1–3 3–5 mm 200 Mesh | Custom on request |
| Quality Certification | ISO 9001 · XRF · Chemical Analysis · ASTM C:357 | ISO 9001 · XRF · Chemical Analysis · ASTM C:357 | ISO 9001 · XRF · Chemical Analysis · ASTM C:357 |
Industry Use
Applications
Grades
Available Grades
Bespoke Supply
Custom Grade
Custom Manufacturing Options
Korvanto supplies chamotte according to customer requirements including:
Discuss Custom Specs →Particle Size Distribution
Custom Specifications & Grades
Application-Specific Formulations
Quality & Purity Requirements
Custom Packaging
Export Documentation Support
Export Supply
Packaging Options
Product Support
Frequently Asked Questions
What is KORVANTO CHAM
Korvanto CHAM is a high-quality calcined refractory clay (chamotte) produced by firing selected fireclays at controlled temperatures. It is widely used in refractory ceramic kiln furniture and high-temperature industrial applications where thermal stability and consistent performance are required.
What grades of KORVANTO CHAM are available
Korvanto supplies five standard chamotte grades:
Korvanto CHAM LF42
Korvanto CHAM LF46
Korvanto CHAM LF54
Korvanto CHAM LF60
Korvanto CHAM LF70
Each grade is designed to meet different alumina content and refractory performance requirements.
How do I select the right chamotte grade
The appropriate grade depends on the required alumina content service temperature refractory design and end-use application. Our technical team can recommend the most suitable grade based on your manufacturing process and performance requirements.
What particle sizes are available
Korvanto CHAM is available in various particle sizes including:
Powder (200 Mesh)
0–1 mm
1–3 mm
3–5 mm
5–8 mm
Custom sizing can also be supplied based on customer requirements.
Can Korvanto supply customized chamotte specifications
Yes. Korvanto can supply customized chamotte grades with specific alumina content particle size distribution bulk density and other technical parameters according to customer and application requirements.
Which industries use KORVANTO CHAM
Korvanto CHAM is supplied for refractory manufacturing ceramics kiln furniture foundries furnaces and other high-temperature industrial applications. Detailed end-use industries are listed in the Applications section of this page.
What packaging options are available
Korvanto CHAM is available in:
25 kg Bags
50 kg Bags
Jumbo Bags (FIBC)
Palletized Shipments
Bulk Container Loads
Customized export packaging is also available upon request.
What quality documents are available
Depending on customer requirements Korvanto can provide:
Technical Data Sheet (TDS)
Certificate of Analysis (COA)
Safety Data Sheet (SDS) where applicable
Commercial Invoice
Packing List
Certificate of Origin (where applicable)
Other export documentation as required
Does Korvanto export chamotte internationally
Yes. Korvanto supplies export-ready chamotte with quality verification secure packaging and complete export documentation to customers worldwide.
Get Started
Request TDS / Request Quote
Share your grade requirements destination country and documentation needs. Our export team will provide a Technical Data Sheet certificate support and a tailored quotation for Korvanto Chamotte.
